12V 50A Remote Programmable Rectifier Power Supply for Electroplating

12V 50A Remote Programmable Rectifier Power Supply for Electroplating

Наименование марки: Xingtongli
Номер модели: GKD12-50CVC
МОК: 1 шт
цена: 500-800$/unit
Подробная информация об упаковке: Стандартный экспортный пакет с сильной фанерой
Условия оплаты: L/C, D/A, D/P, T/T, Western Union, Moneygram
Подробная информация
Место происхождения:
КИТАЙ
Сертификация:
CE ISO9001
Поставка способности:
200 комплектов/наборов в месяц
Характер продукции

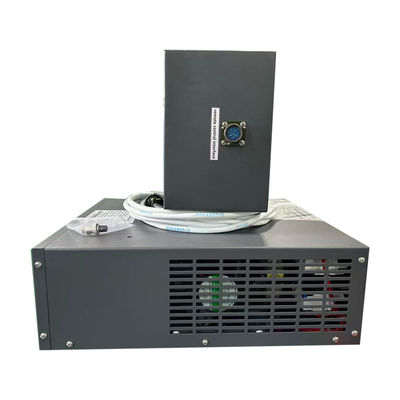

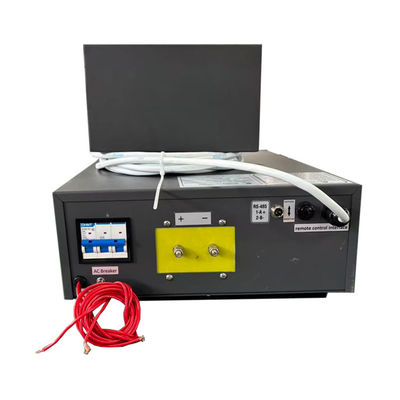

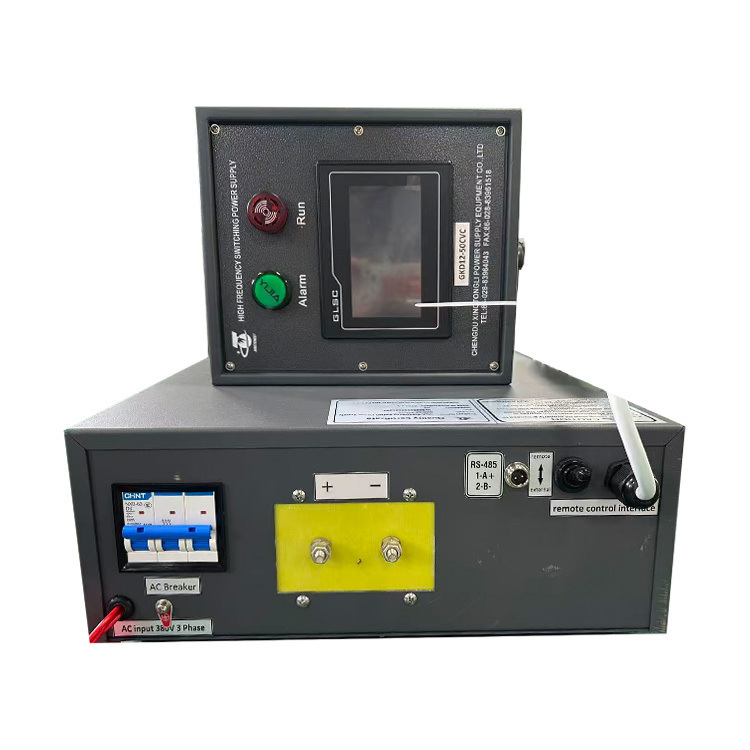

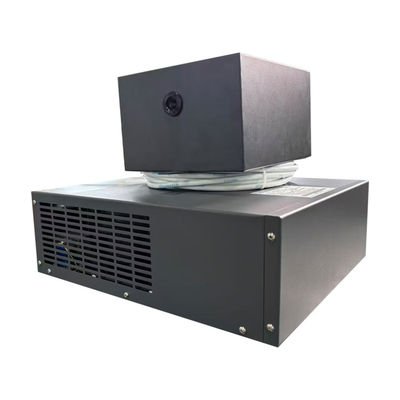

12V 50A Remote Programmable Rectifier Power Supply for Electroplating

The 12V 50A remote programmable rectifier is designed for precise electroplating, laboratory testing, and industrial applications. With remote control and programmable functions, it allows accurate adjustment of voltage and current, data recording, and automated operation. Featuring stable DC output, compact design, and high reliability, it ensures consistent quality and easy integration with control systems.



Technical Specifications
  • Input Power: three-phase 380V AC ±10%, 50/60Hz
  • Output Capability:
    • Voltage: DC 0-12V continuously adjustable
    • Current: DC 0-50A continuously adjustable
    • Power: Max.600W (12V ×50A)
  • Regulation Accuracy: Voltage ±1%, Current ±1%
  • Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
  • Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
  • Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
  • Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol);local panel control

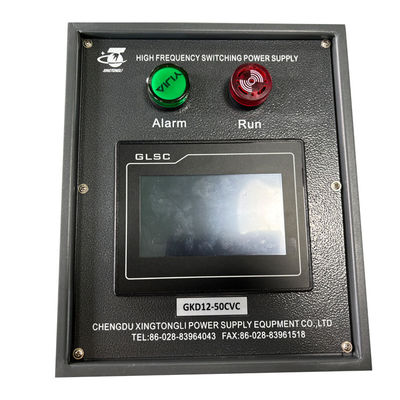

  • Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
  • Operating Temperature: -10℃ to +50℃
  • Protection Rating: IP21 (dust and drip-proof)

Key Advantages
  • Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
  • Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
  • Compact Design: Space-saving and lightweight, suitable for workshops or labs.
  • Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
  • High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications
  • Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
  • Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
  • Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
  • R & D & Education: Electrochemical experiments in universities and research institutes.
  • 12V 50A Remote Programmable Rectifier Power Supply for Electroplating 0
  • 12V 50A Remote Programmable Rectifier Power Supply for Electroplating 1
