Гальванизируя электропитание
>

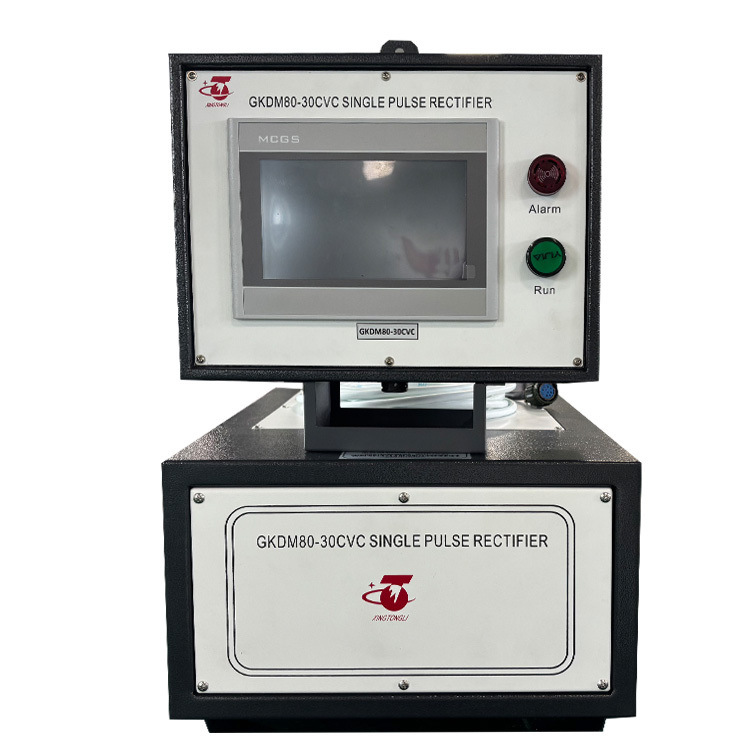

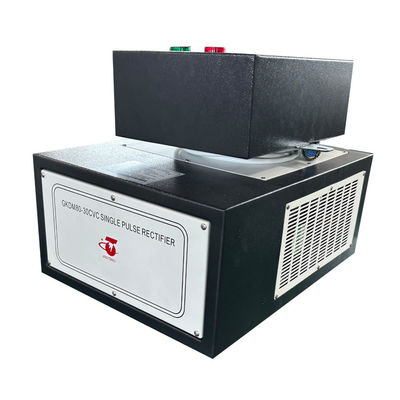

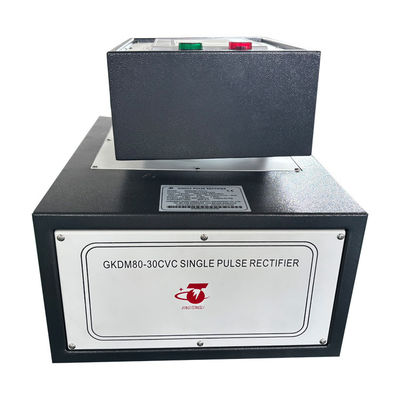

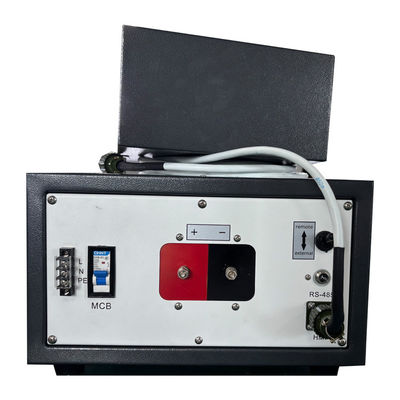

80V 30A High-Precision Single Pulse Rectifier for Jewelry Electroplating

80V 30A High-Precision Single Pulse Rectifier for Jewelry Electroplating

Наименование марки: Xingtongli
Номер модели: ГКДМ80-30CVC
МОК: 1 шт
цена: 5500-6500$/unit
Подробная информация об упаковке: Стандартный экспортный пакет с сильной фанерой
Условия оплаты: L/C, D/A, D/P, T/T, Western Union, Moneygram
Подробная информация
Место происхождения:
КИТАЙ
Сертификация:
CE ISO9001
Поставка способности:
200 комплектов/наборов в месяц
Характер продукции
80V 30A High-Precision Single Pulse Rectifier for Jewelry Electroplating

High-performance 80V 30A single pulse power supply specially designed for jewelry electroplating. Provides stable and precise DC output, ensuring smooth plating, bright finishes, and consistent quality for small and delicate items. Compact, easy to operate, ideal for workshops and small-scale production.



Technical Specifications
  • Input Power: single-phase 240V AC ±10%, 50/60Hz
  • Output Capability:
    • Voltage: DC 0-80V continuously adjustable
    • Current: DC 0-30A continuously adjustable
    • Power: Max.2.4KW (80V ×30A)
  • Regulation Accuracy: Voltage ±1%, Current ±1%
  • Efficiency: ≥89% (IGBT high-frequency soft-switching technology)
  • Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
  • Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
  • Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol);remote box control
  • Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
  • Operating Temperature: -10℃ to +50℃
  • Protection Rating: IP21 (dust and drip-proof)

Key Advantages
  • Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
  • Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
  • Compact Design: Space-saving and lightweight, suitable for workshops or labs.
  • Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
  • High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications
  • Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
  • Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
  • Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
  • R & D & Education: Electrochemical experiments in universities and research institutes.
  • 80V 30A High-Precision Single Pulse Rectifier for Jewelry Electroplating 0
